Edwards E2M28: Factory Rebuilt
Edwards E2M28: Factory Rebuilt
Regular price
$3,000.00 USD
Regular price
Sale price
$3,000.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

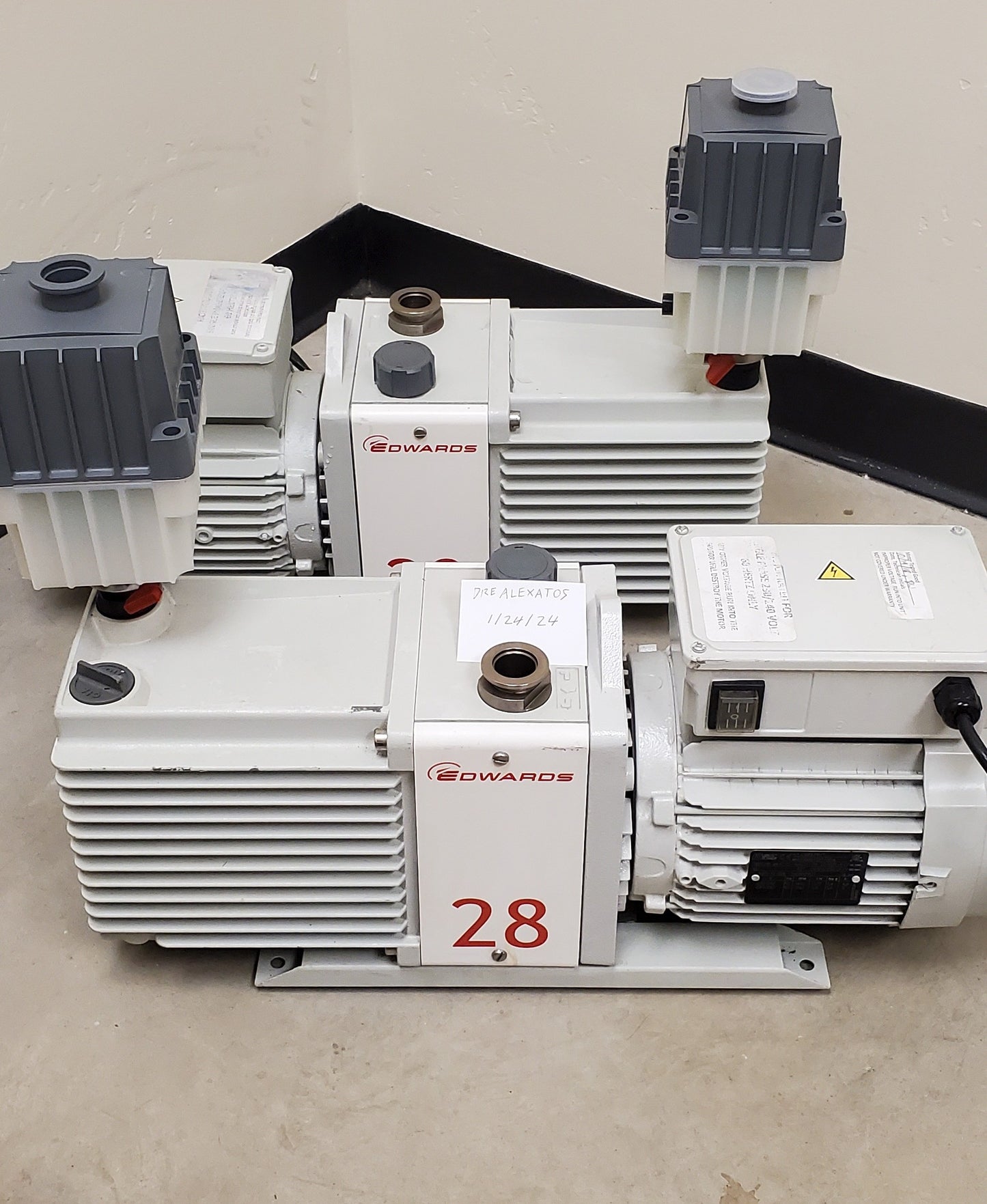

Edwards E2M28: high-capacity, dual-stage rotary vane vacuum pump delivering up to 21 CFM (33 m³/h) at 60Hz. It features an oil-sealed sliding-vane design, NW25 inlet connections, a gas ballast valve for water vapor handling, and an ultimate vacuum of 10⁻⁴ mbar.
Technical Specifications
- Pumping Speed: 19.5 CFM at 60 Hz / 16.2 CFM at 50 Hz (33.1 m³/h at 60 Hz / 27.5 m³/h at 50 Hz)
- Ultimate Pressure (Without Gas Ballast): 1 × 10⁻⁴ mbar (partial) / 1 × 10⁻³ mbar (total)
- Ultimate Pressure (With Full Gas Ballast): 2 × 10⁻¹ mbar (partial)
- Oil Capacity: 1.32 Liters (Recommended: Ultragrade 19)
- Inlet/Outlet Ports: NW25 inlet flange
- Weight: ~44 kg (97 lbs)
Key Features & Maintenance
- Gas Ballast Control: Prevents condensation of process vapors inside the pump when handling condensable gases, such as water vapor (up to 700 g/hr capacity).
- Safety & Protection: Equipped with a thermal overload device (single-phase models) to prevent motor overheating. An internal oil distribution valve blocks oil suck back when stopped.
- Rebuild & Service: The pump was recently factory-rebuilt and has been maintained with regular oil changes & function tests thereafter.
Shipping: Items can be picked up on-site or shipped. Buyers are responsible for shipping costs and arranging pickup. Please reach out to discuss specific details.
