Edwards nXDS20iC Dry Scroll Pump: Rebuilt
Edwards nXDS20iC Dry Scroll Pump: Rebuilt
Regular price
$4,750.00 USD
Regular price
$5,000.00 USD
Sale price
$4,750.00 USD
Unit price
per
Couldn't load pickup availability

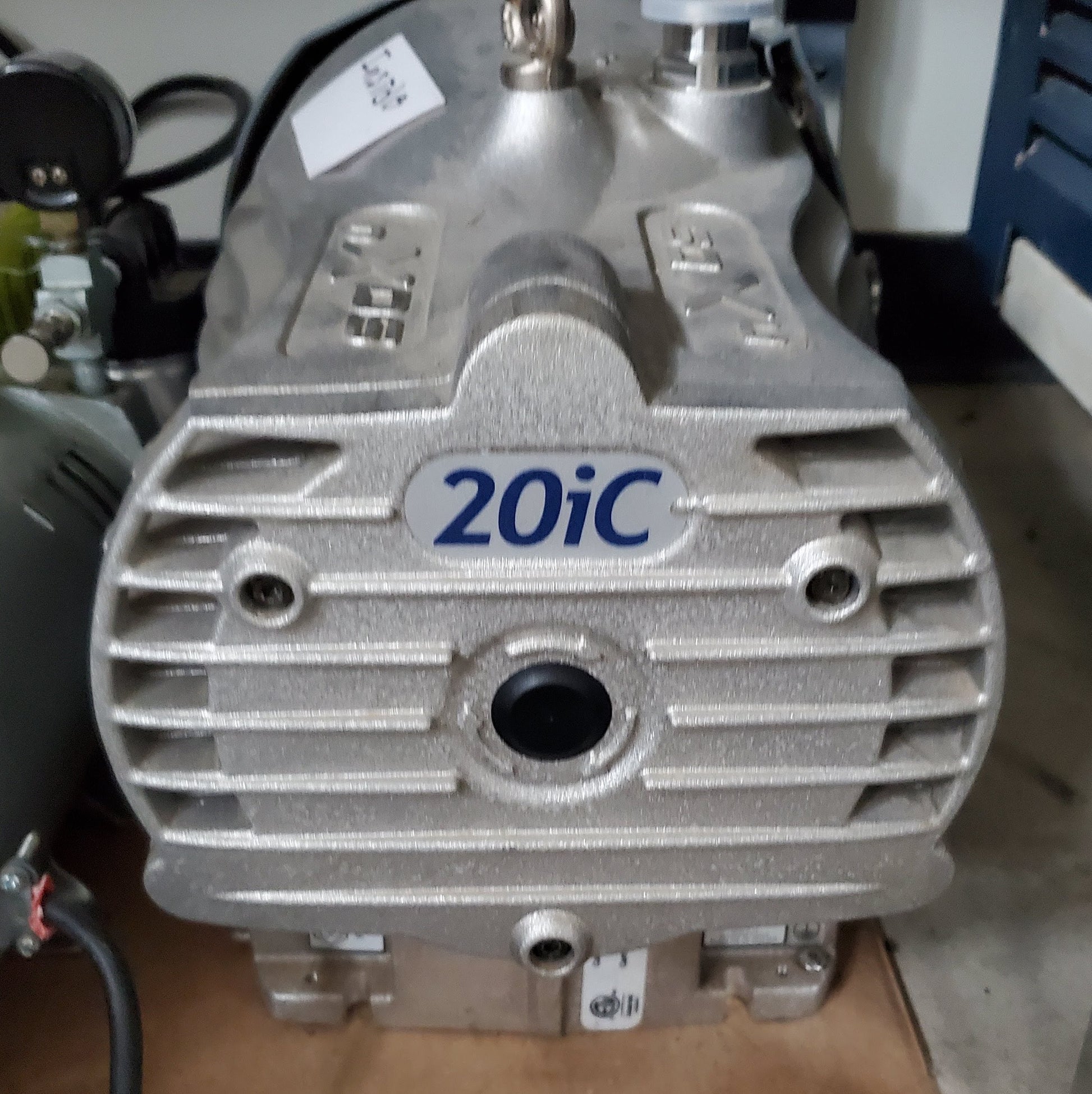

Edwards nXDS20iC Dry Scroll Pump (Rebuilt ): A high-capacity, chemical-resistant, and oil-free dry scroll vacuum pump designed for vapor handling and corrosive processes.
Key Specifications
- Peak Pumping Speed: 13.0 CFM (22.0 m³/h) at 60 Hz
- Ultimate Vacuum: 0.022 Torr (0.030 mbar) without gas ballast
- Electrical Requirements: 100-127/200-240V, 50/60Hz, 1Ph
- Noise Level: 52 dB(A)
- Weight: 56 lbs (25.6 kg)
- Inlet/Exhaust Flange: NW25 / KF25
Corrosion Resistance: Equipped with Chemraz® internal valve pads and stainless steel fittings to handle harsh chemical vapors and solvents.
Oil-Free Design: Hermetically sealed vacuum space keeps lubrication isolated from the process, eliminating back streaming and oil contamination.
Smart Controls: Features an integrated inverter drive with auto-sensing input voltage and manual/remote speed control via USB, RS232, or RS485.
